Customized Furniture Office Chair Drop Impact Test Machine
GENERL SPECIFICATIONS:
Packaging Dimensions: (W*D*H) 1640*1340*2010mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 726KG
HS Code: 9024800000
DESIGN STANDARD: Bifma x5.1-2017
TECHNICAL PARAMETERS
| Control Mode | PLC Control |
| Display Mode | Touch Screen |
| Cylinder Stroke | 300mm |
| Impact Speed | 10～30times/min |
| Seat Height | 200mm～600mm(adjustable) |
| Drop Weight | 57kg,102kg,136kg |
| Drop Height | 30mm,36mm,152mm |
| Test Degree | 1～999999 |
| Weight | About 500kg |
| Power Supply | 1∮ AC 220V |
| Rate of Work | About 200W |
| Data Output | USB |
| Maximum external dimension | 1200mm×1450mm×2600mm(L*W*H) |
| Main testing item | one impact and impact durability test |
CONFIGURATION:
| Configuration | Name | Details |
| Standard Configuration | Documents | Operation Manual*1 piece |
| Factory Inspection Report*1 piece |
| Operation Video in USB flash disk with machine*1 piece |
| Power line | 1 piece |
| Air Pipe | 1 piece |
| Weight Bag | woven bag*1 piece |
| Small steel ball bag | 10kg *12 pieces +5kg*3 pieces + 1kg *2 pieces |
| Testing Clamp | Chair Fixing Seat for chair foot *5 pieces; |
| Sample damage fixture*1 piece; |
| Limit clamp*2 piece |
| Fixed height block | 152mm*1piece ；36mm*1 piece；30mm*1 piece |
| Optional Configuration | air compressor | Suggest ≥ 3P |
| Plug | 1 piece(Per customer country’s standard) |
QUALITY GUARANTEE
A) Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
- During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
- If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
- If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
- Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;
B) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
① please keep the guarantee letter, if you lost it, please connect with us in a month.
② If the guarantee letter has been altered or it has no our stamp, it is useless.
C) The following conditions need to be paid reasonably even in the assurance period:
① Natural reasons
② Operating mistakes
③ Voltage is not fit for our operation instruction
④ Repack it without our guides
⑤ Damaged for borrowing to others
⑥ Damaged for authorized machine modification
⑦ Damaged for authorized calibration
⑧ Authorized transshipment mistake
⑨ Serve for long distance area
Product Tags:
|
|

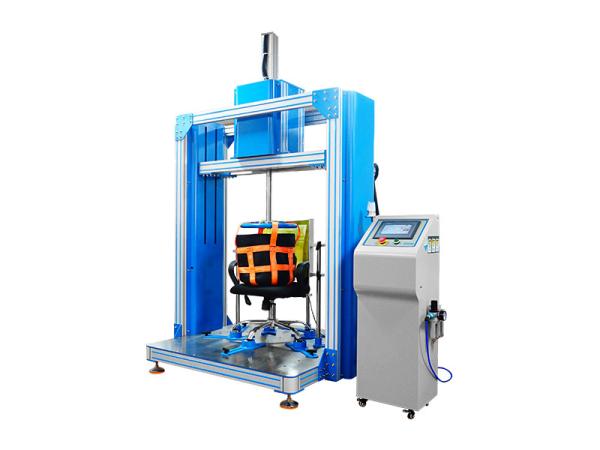

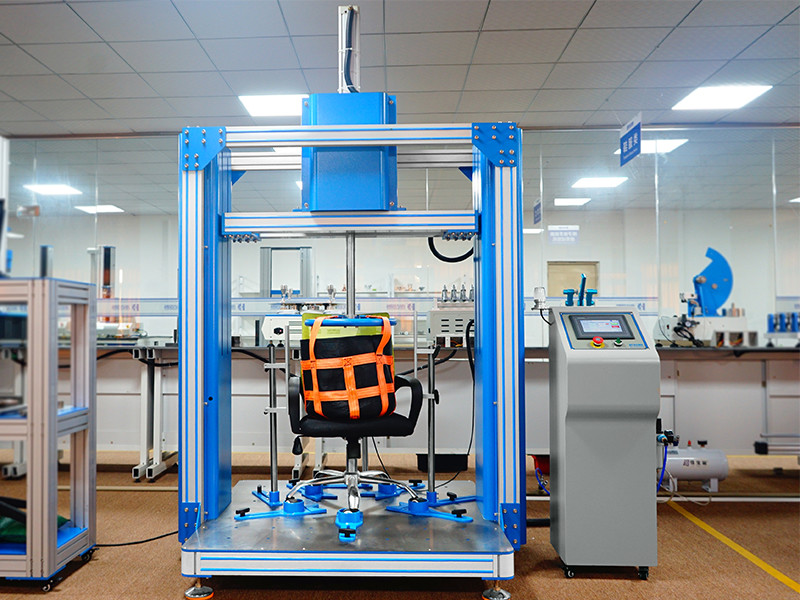

Customized Furniture Office Chair Drop Impact Test Machine Images
|
