Desktop Digital Tensile Testing Machines CE Certificate Tensile Tester Machine

Brand Name : HAIDA

Model Number : HD-B604-S

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Accuracy : ±0.5%

Capacity : 2000 kg (20KN)

Elongation Accuracy : 0.001mm

Max. Stroke : 1000mm (including fixture)

Resolution : 1/250000

Sensor : Celtron load cell

Test Speed : 0.1-500mm/min (adjustable )

type : universal tensile testing machine

Accessories : customized clamps by appointed, force sensors,printer, and operation manual

Power : 220V/50HZ or 110V/60HZ

Contact Now

Desktop Digital Tensile Testing Machines CE Certificate Tensile Tester Machine

Appliaction:

  1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Foam:

  • ASTM D3574 Test E, ASTM D1623, ISO 1798: Tensile Test
  • ASTM D3574 Test F, ISO 8067: Tear Test
  • ASTM D3574 Test A: Density Test
  • ASTM D3574 Test B1, ISO 2439: IFD Test
  • ASTM D3574 Test H: Resilience (Ball Rebound) Test
  • ASTM D3574 Test I3: Dynamic Fatigue Test by Constant Force

Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...

Main Technical Parameter:

Item Description
Max. Force 2000 kg (20KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1200mm including fixture
Load cell Resolution 1/250,000
Load Precision ≤0.5%
Test speed 0.1~500mm/min (adjustable by PC)
Test width ≤400mm
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

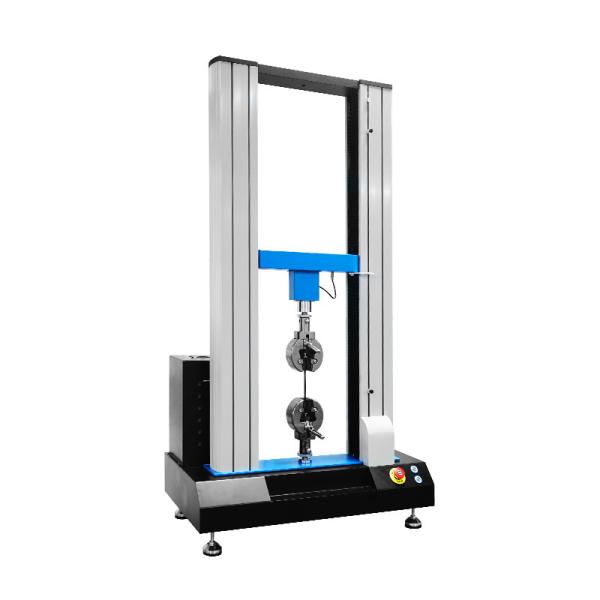

Tensile Testing Machines View:

Desktop Digital Tensile Testing Machines CE Certificate Tensile Tester MachineDesktop Digital Tensile Testing Machines CE Certificate Tensile Tester Machine

Features :

  1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
  2. Using a single-screen operation; do not need to switch the screen;
  3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
  4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
  5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
  6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
  7. With self-return & auto-correction function;
  8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
  9. With the user-defined Test methods; with experimental data analysis function;
  10. High quality, accurate and reliable models with reasonable price.
